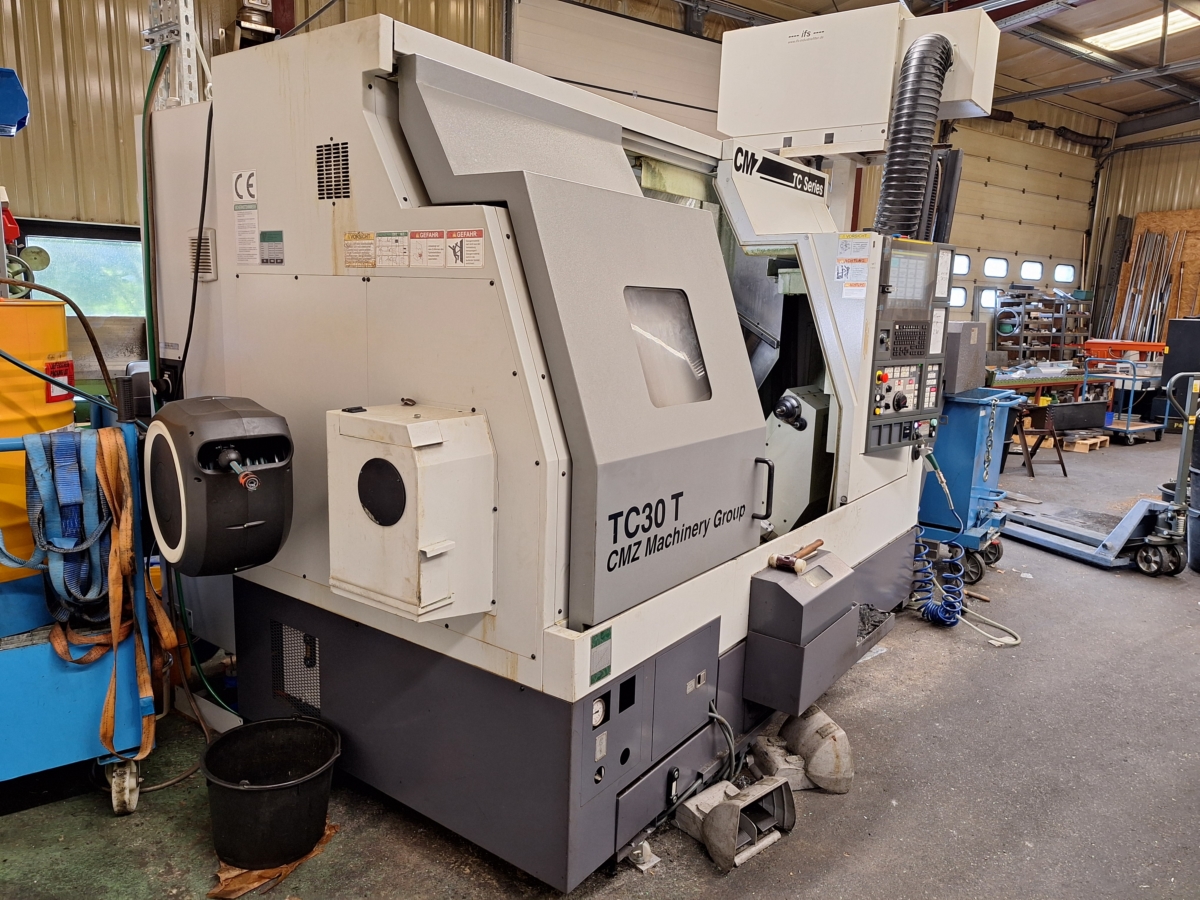

CNC Lathe CMZ TC 30 T

Data

• Stock-No.: 1021-53710
• Make: CMZ
• Type: TC 30 T
• Newin : 2017

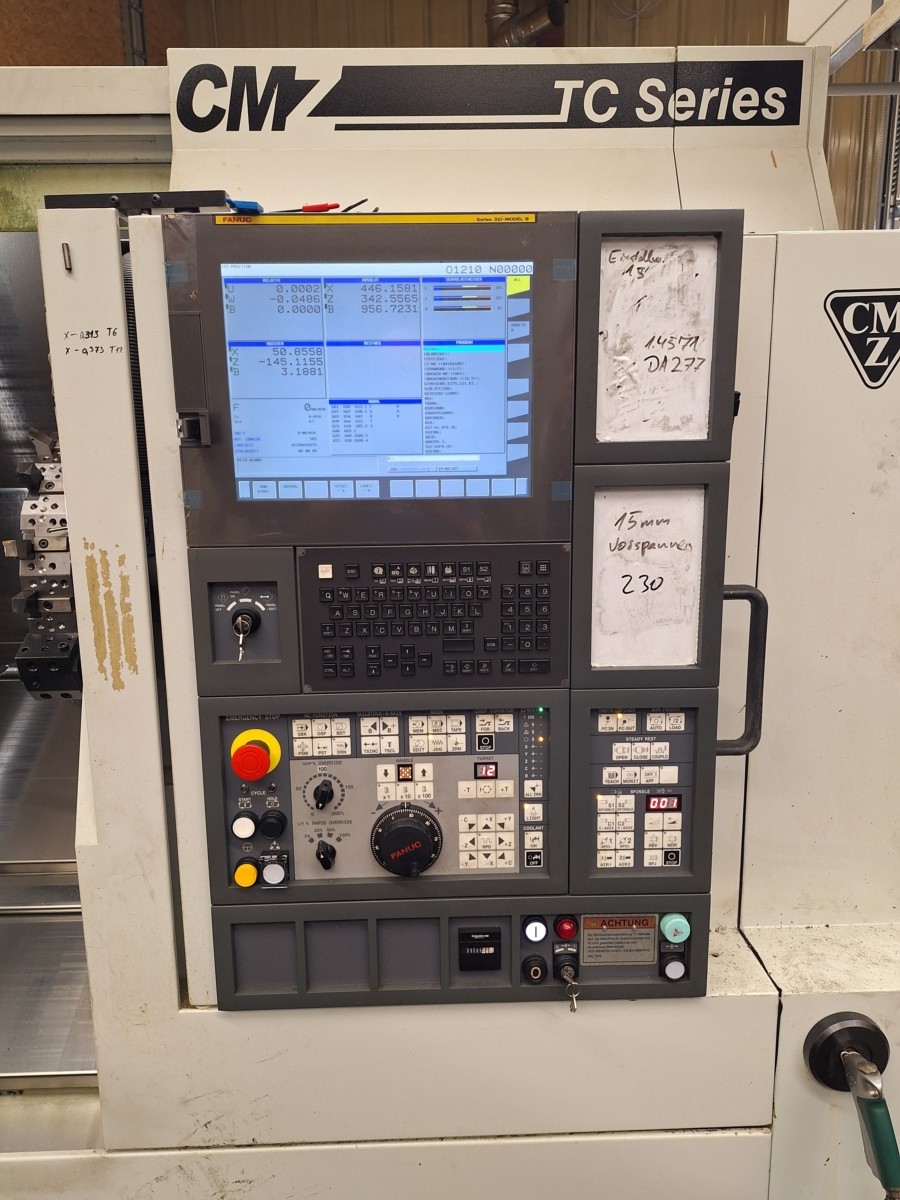

• Control : FANUC Series 31i Model B

Other Information

• Storage location: Germany
• Country of origin: spain
• Delivery time: immediately
• Freight base: free loaded, from location

Technical details

• turning diameter 550 mm
• turning length 800 mm
• control FANUC Series 31i Model B
• spindle passage 76 mm
• turning speed range - drive spindle 3500 U/min
• drive capacity - spindle motor 40/25 kW
• max. torque on the spindle 864 Nm

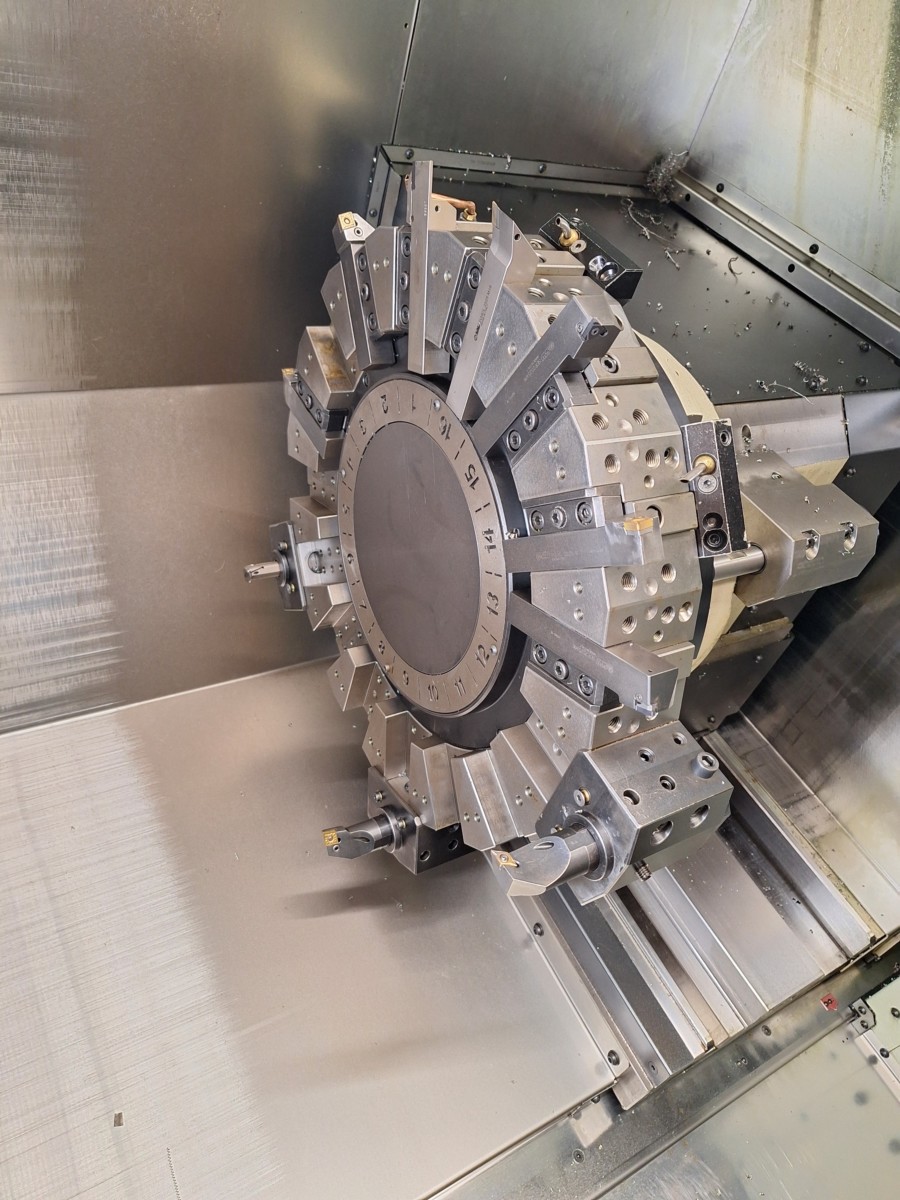

• Number of tools 16 St.
• tool adaptor BMT
• rapid traverse 30 m/min
• dimensions 2,9 x 2,1 x 2,25 m
• weight of the machine ca. 6,5 t

Desciption

Used CNC- lathe with boxway system in very good condition

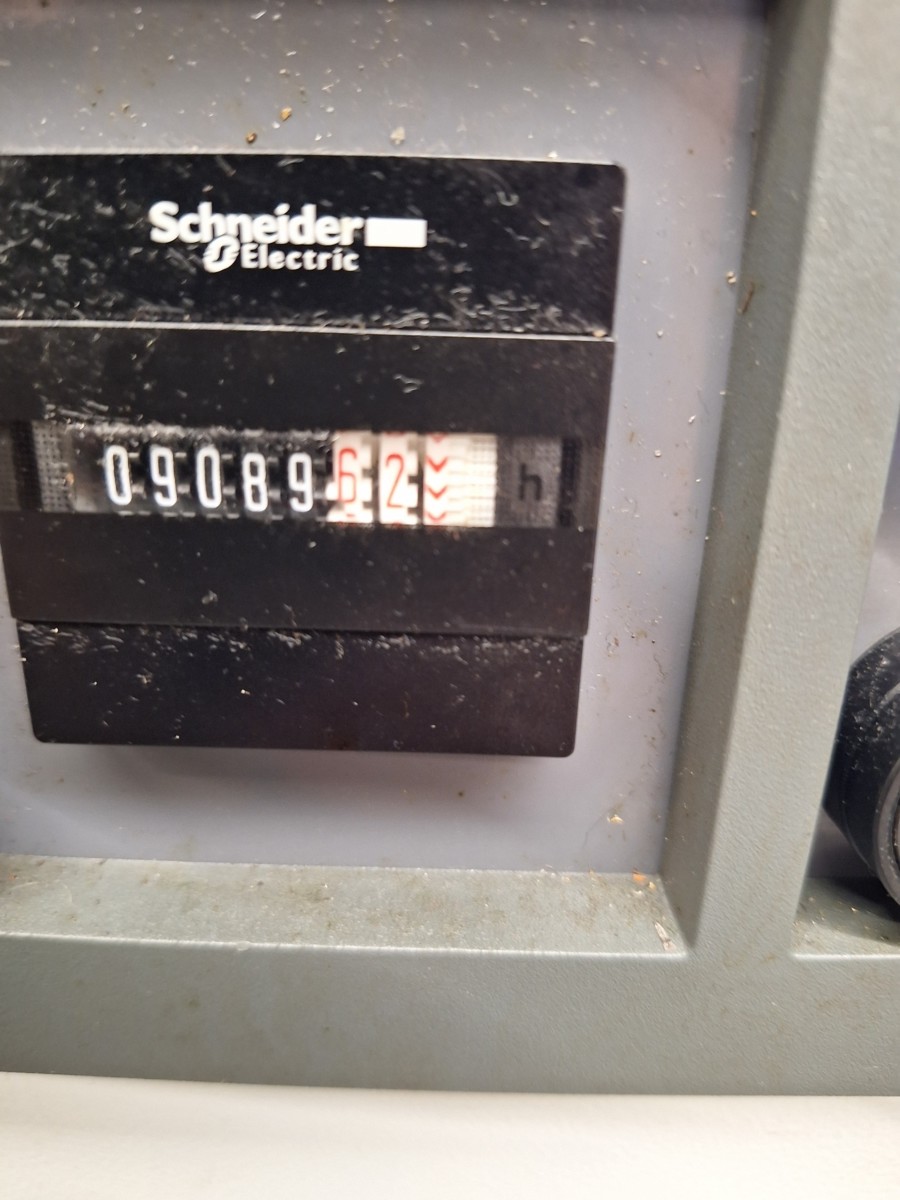

Only 9.100 h power on.

- 3- jaw chuck Ø 315 mm
- chip conveyor
- some tool holders
- tailstock programmable
- oil dust collector
-"Build In" motor
