Data
- Stock-No.: 1021-53410
- Make: Hwacheon
- Type: Cutex 180 BL SYMC
- Newin : 2019
- Control : Siemens 828 D Shop turn
Other Information
- Storage location: Bremen
- Country of origin: Korea
- Delivery time: february
- Freight base: free loaded, from location
Technical details
- turning diameter 230/300 mm
- turning length 452 mm
- greates pass round over bed 700 mm
- control Siemens 828 D Shop turn
- spindle passage 65 mm
- spindle speed: 4500 U/min
- spindle motor 15/11 kW
- max. torque on the spindle 179 Nm

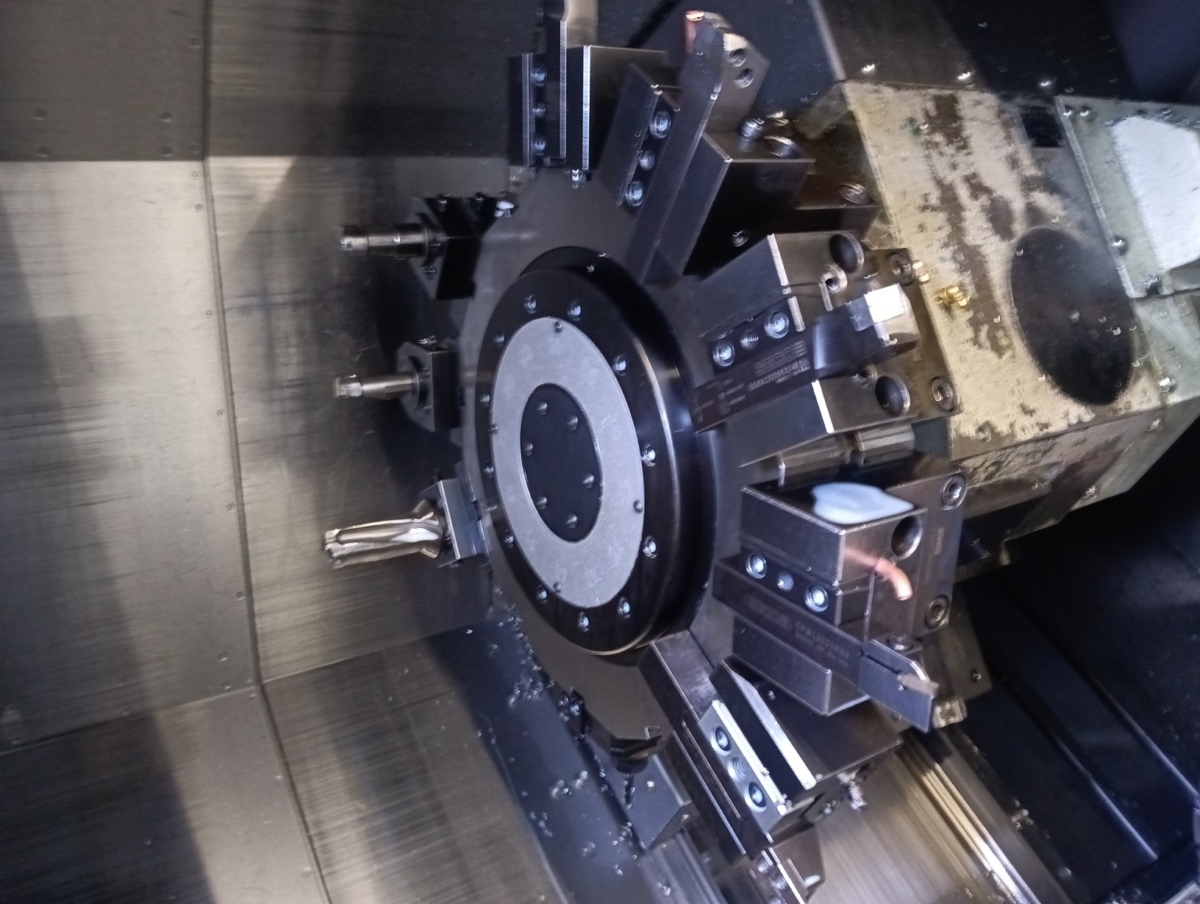

- no. of tools in turret 1 12 BMT 55
- driven stations 12 BMT 55
- speed of driven tools 5000 U/min
- drive milling spindle 5,6/3,7 kW
- y-axis +/- 60 mm
- sup spindle 7,4/4,9 kW
- Spindlespeed subspindle 6000 U/min
- rapid traverse 36/36/10 m/min
- tail stock Gegenspindle/Subspindle
- range L-W-H 3,9 x 1,65 x 2,0 mm
- weight of the machine ca. 4,7 t
Desciption

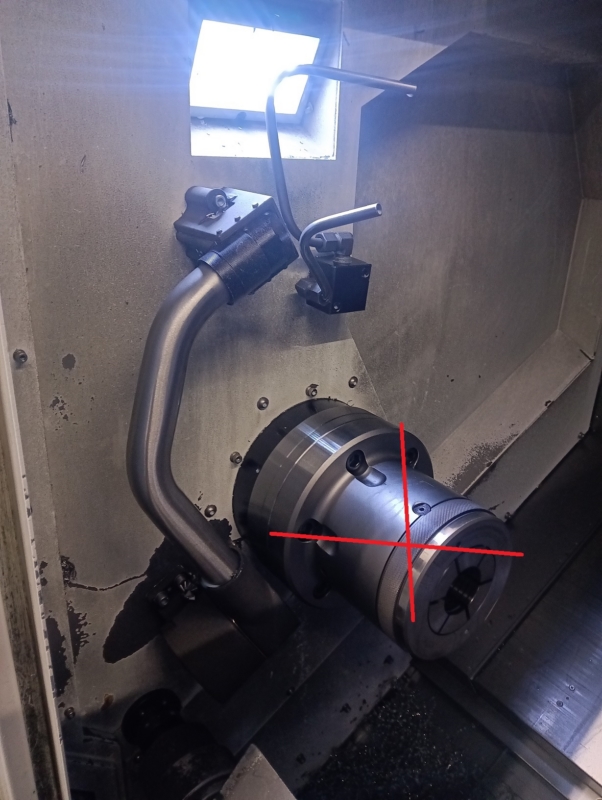

CNC lathe with driven tools, Y- axis and sub spindle- 3 jaw chuck Ø 210 mm main spindle

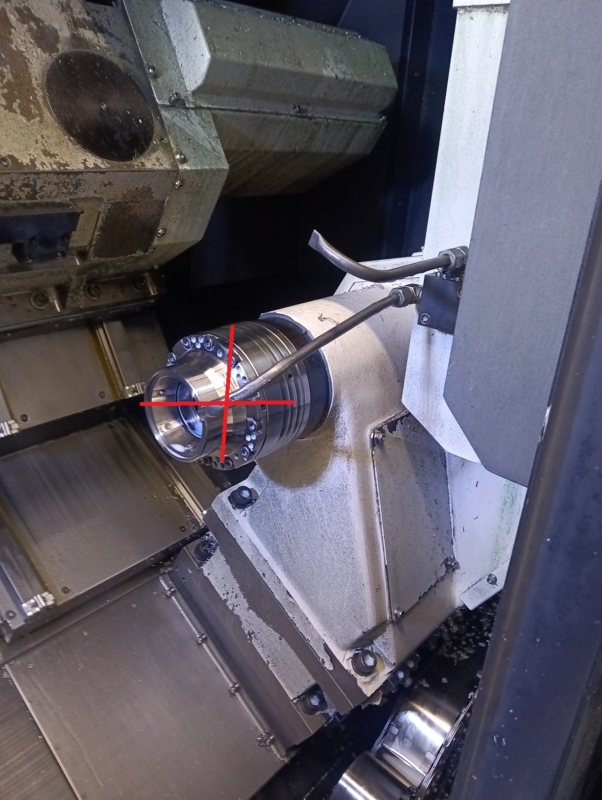

- 3 jaw chuck Ø 135 mm sub spindle

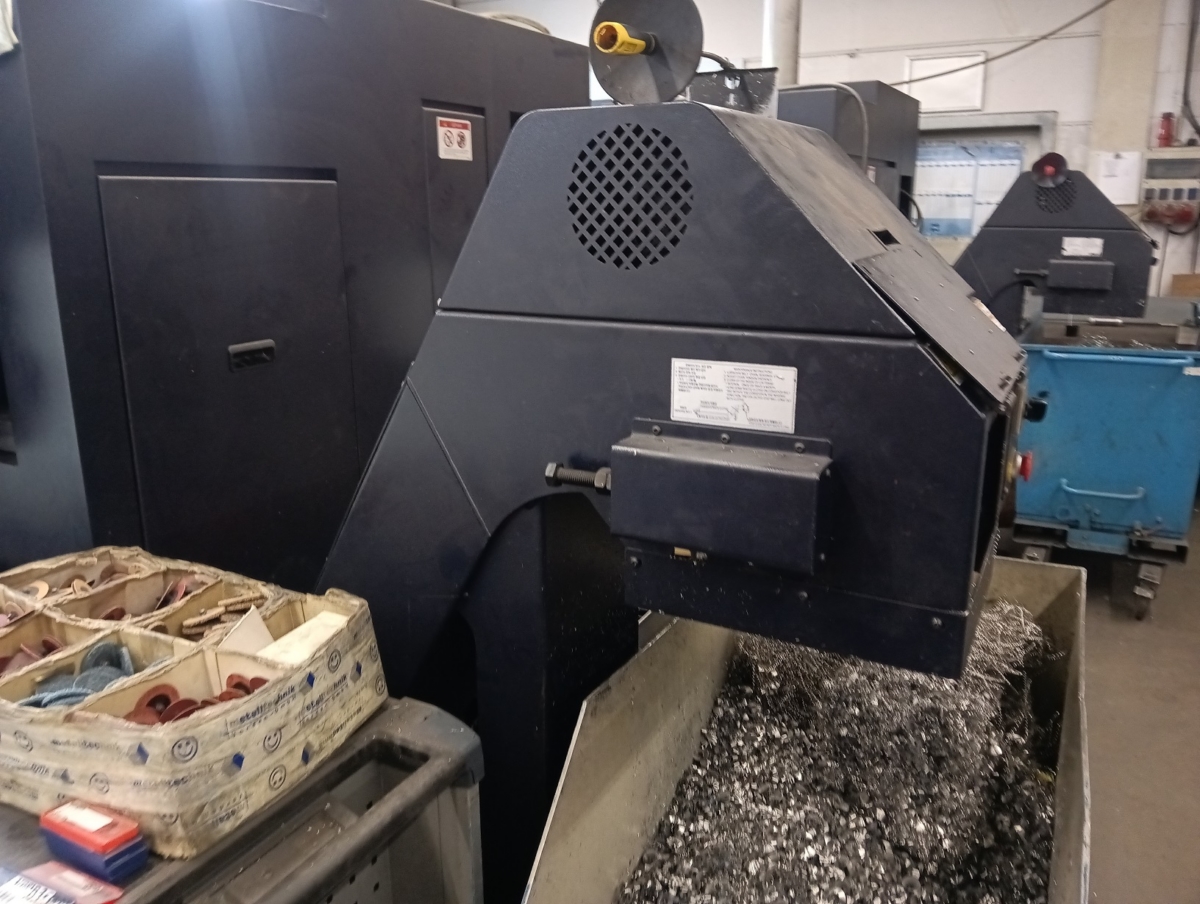

- chipconveyor

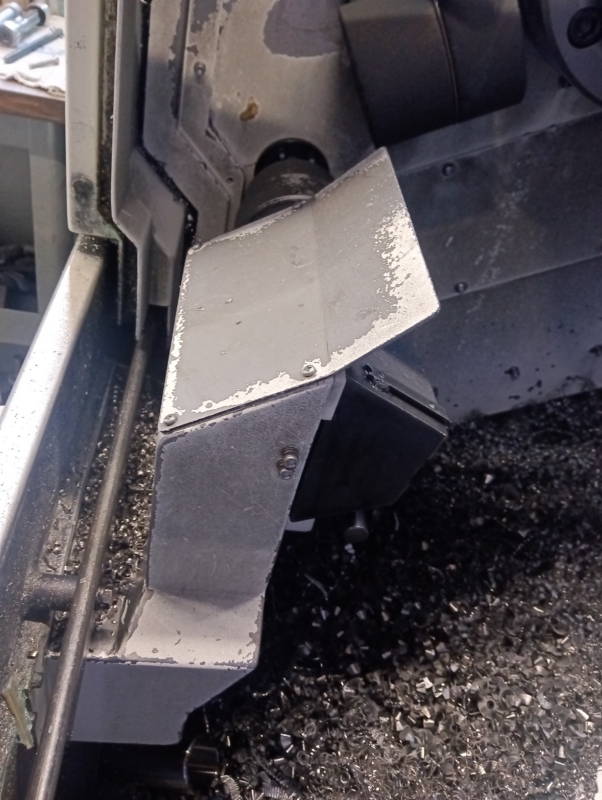

- parts catcher with box in door
- Tool measurung
- 2 + 2 driven toolholder
- some fixed toolholder
- signal lamp 3 colours

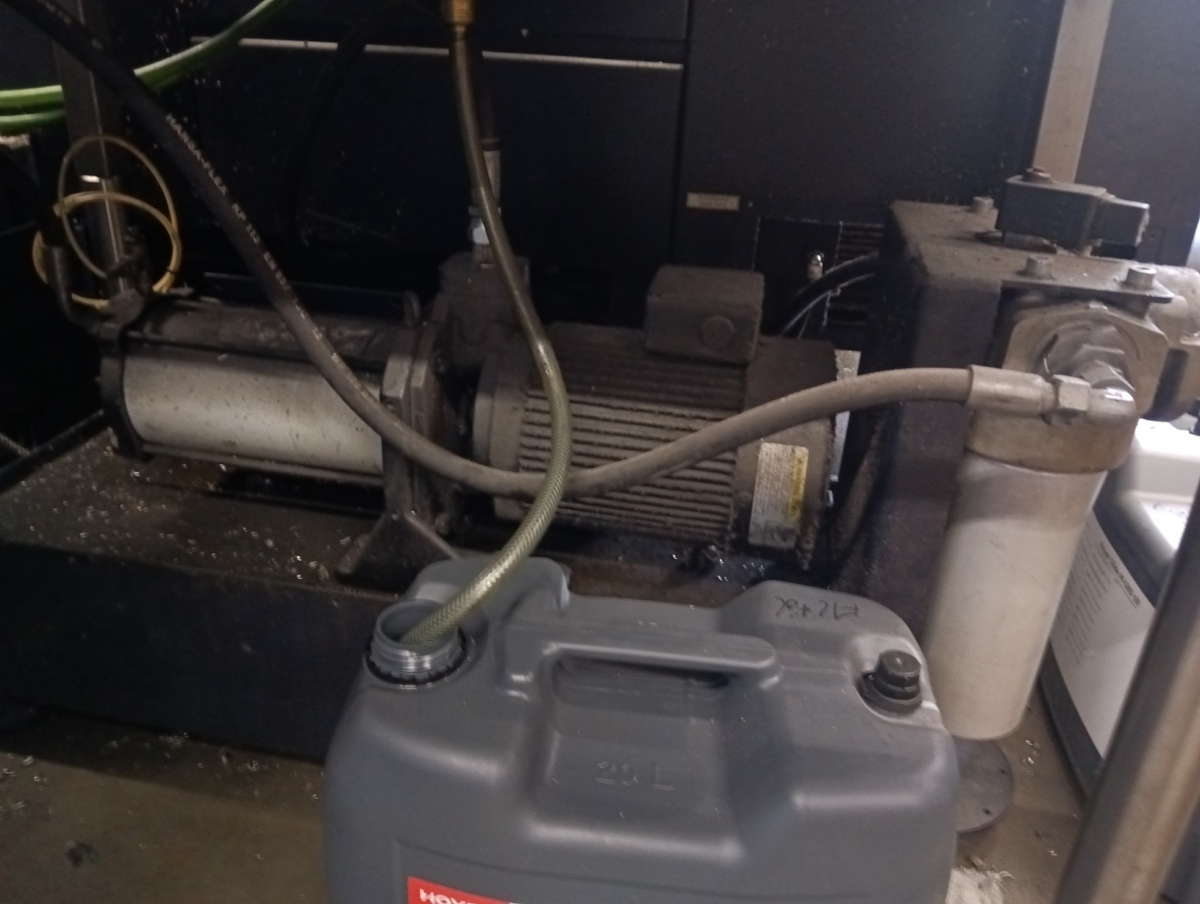

- 15 bar coolant
- double coolant filter
