Data
- Stock-No.: 1021-53310
- Make: HWACHEON
- Type: HiTech 230 BL YMC
- Newin : 2019

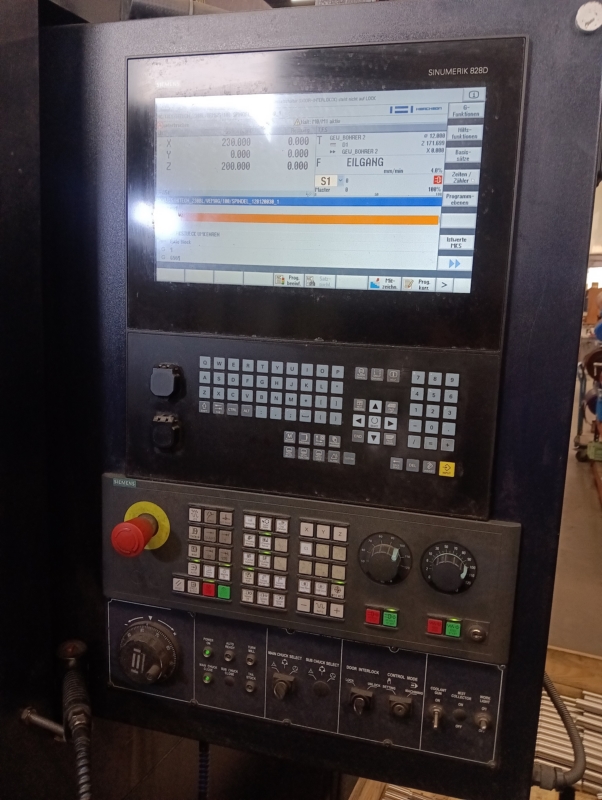

- Control : Siemens 828 D Shop Turn
Other Information
- Storage location: Bremen
- Country of origin: Korea
- Delivery time: august
- Freight base: free loaded, from location
Technical details
- turning diameter 400 mm
- turning length 584 mm
- greates pass round over bed 750 mm
- control Siemens 828 D Shop Turn
- spindle passage 81 mm
- spindle speed: 3500 U/min
- spindle motor 18,5/22 kW
- max. torque on the spindle 410 Nm

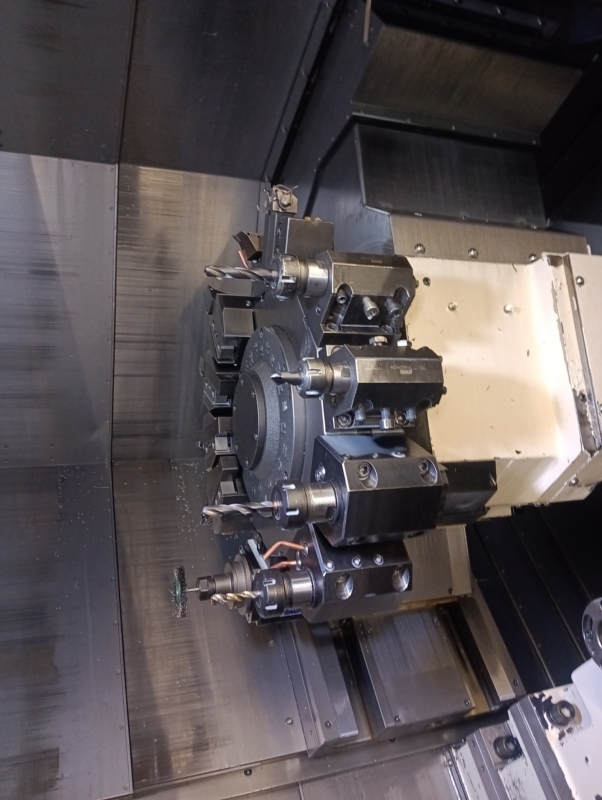

- no. of tools in turret 1 12 BMT 65
- driven stations 12 BMT 65
- speed of driven tools 5000 U/min
- drive milling spindle MK 5 kW
- y-axis +/- 60 mm
- rapid traverse 30/30/10 m/min
- tail stock MK 5
- range L-W-H 4,6 x 1,9 x 2,1 mm
- weight of the machine ca. 6,65 t
Desciption

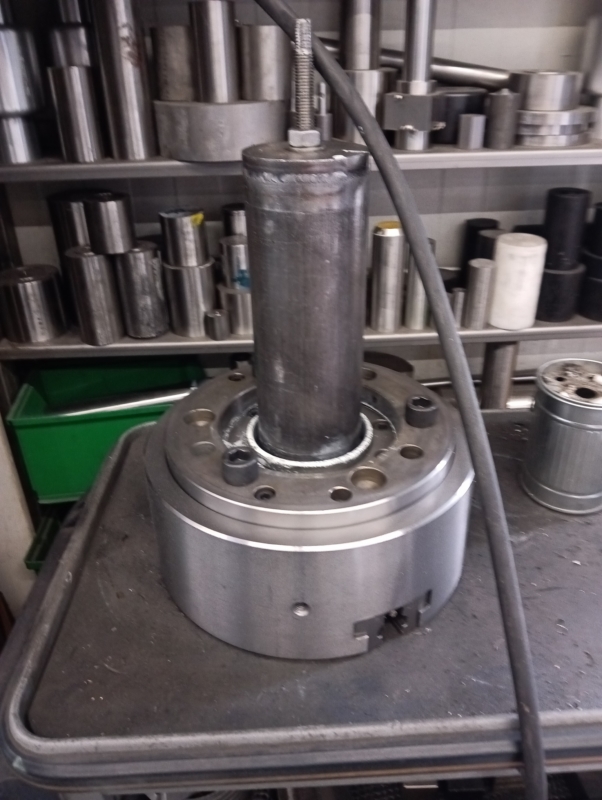

CNC lathe with driven tools, Y- axis and sub spindle- 3 jaw chuck Kitagawa Ø 250 mm

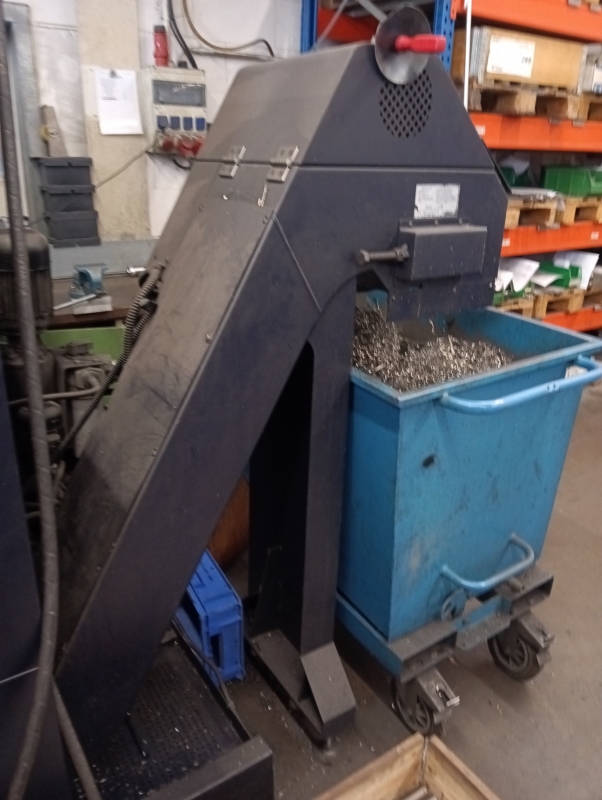

- Chip conveyor
- partscatcher with box into door
- signal lamp
- 2 +2 driven toolholder
- some fixed toolholder
- boxway system
- tool measuring

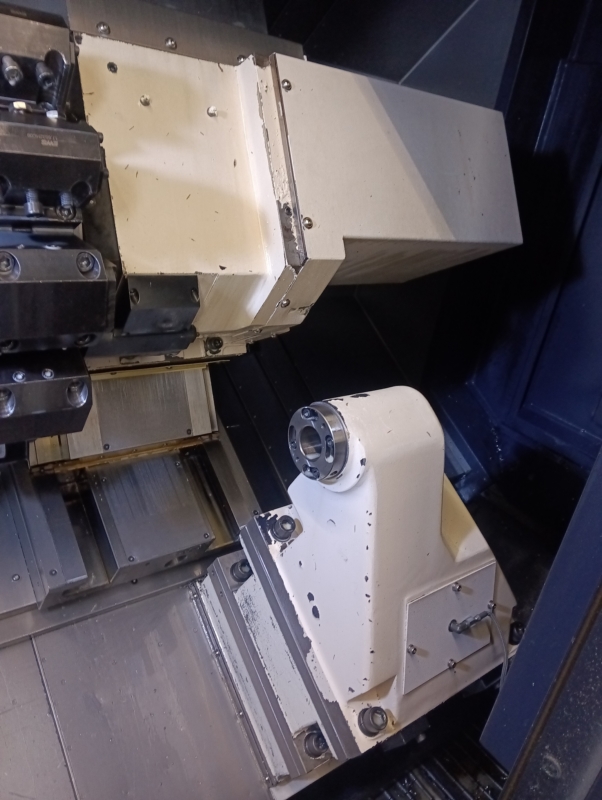

- programmable tailstock
- coolant 23 bar
- bigger coolant tank 225 ltr.

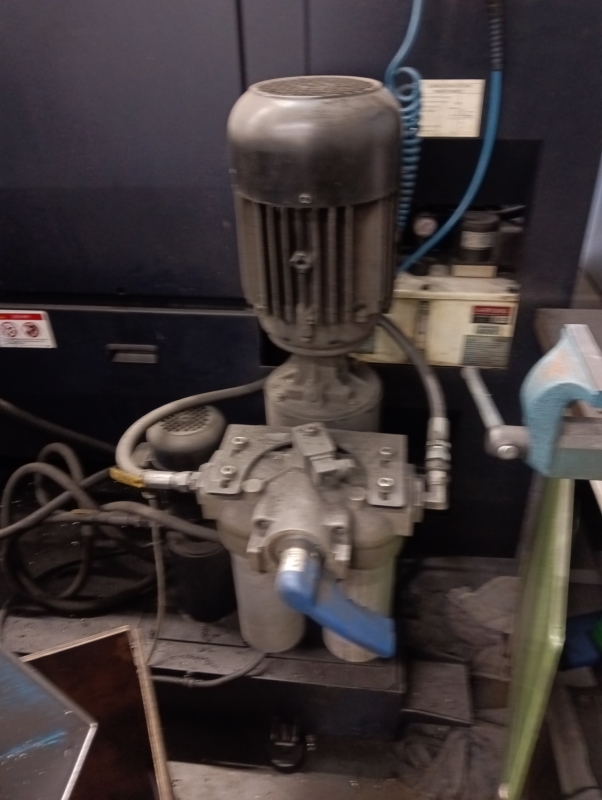

- double cartridge filter
- coolant gun
- two steps coolant pressure
