Data
- Stock-No.: 1021-53010
- Make: MORI Seiki
- Type: NLX 2500 Y / 700
- Newin : 2011

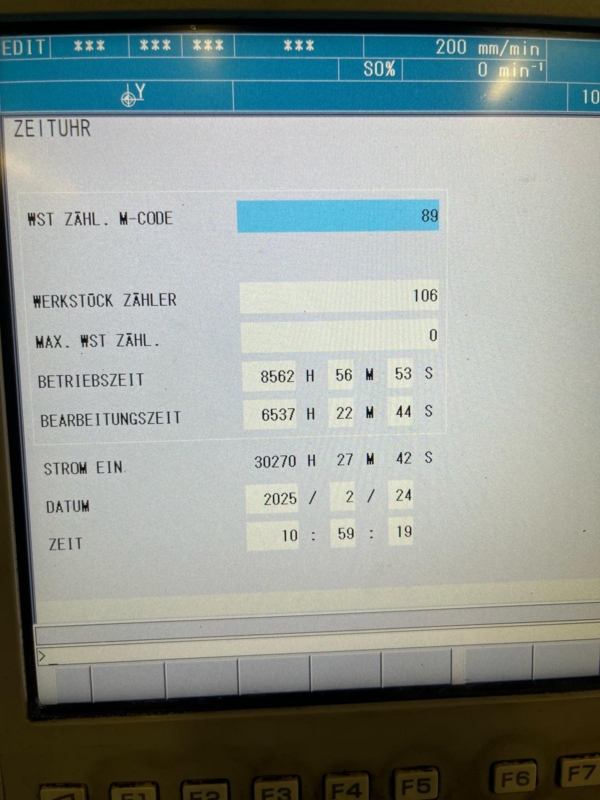

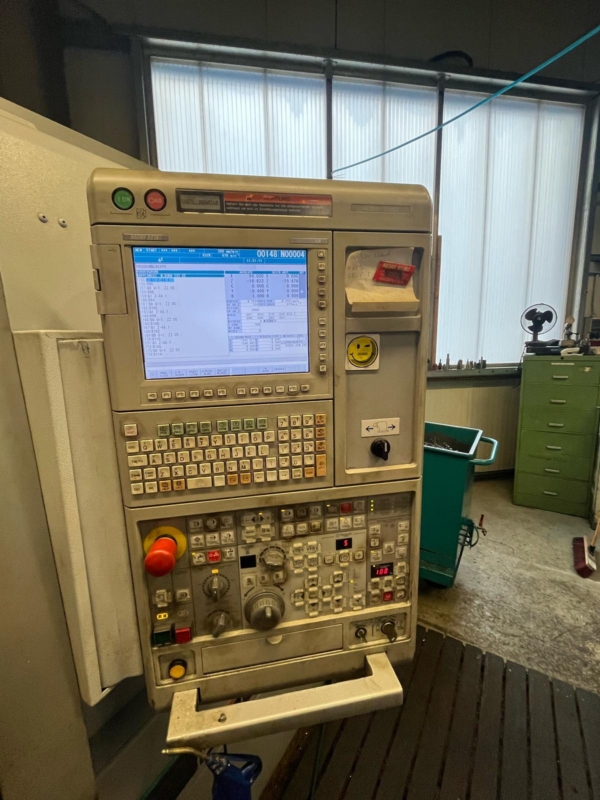

- Control : M730 BM MAPPS IV
Other Information
- Storage location: Bremen
- Country of origin: Japan
- Delivery time: short term
- Freight base: ex site
Technical details
- turning diameter 366 mm
- turning length 705 mm
- control M730 BM MAPPS IV
- standard turning dia. 275 mm
- turning speed range - main spindle 4000 min/-1
- power capacity - main spindel 18,5 kW
- max. bar capacity 80 mm
- chucking diameter 254 mm
- Y - Axis (100) +/-50 mm
- rapid traverse ( X / Y / Z ) 30 / 10 / 30 m/min

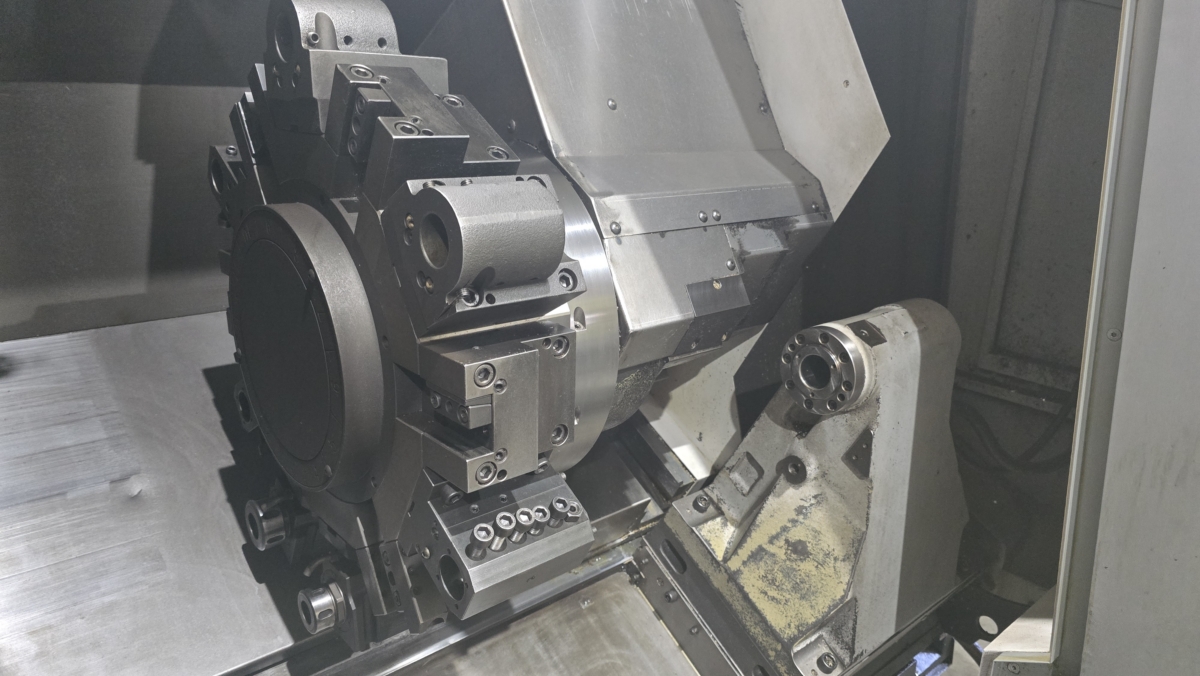

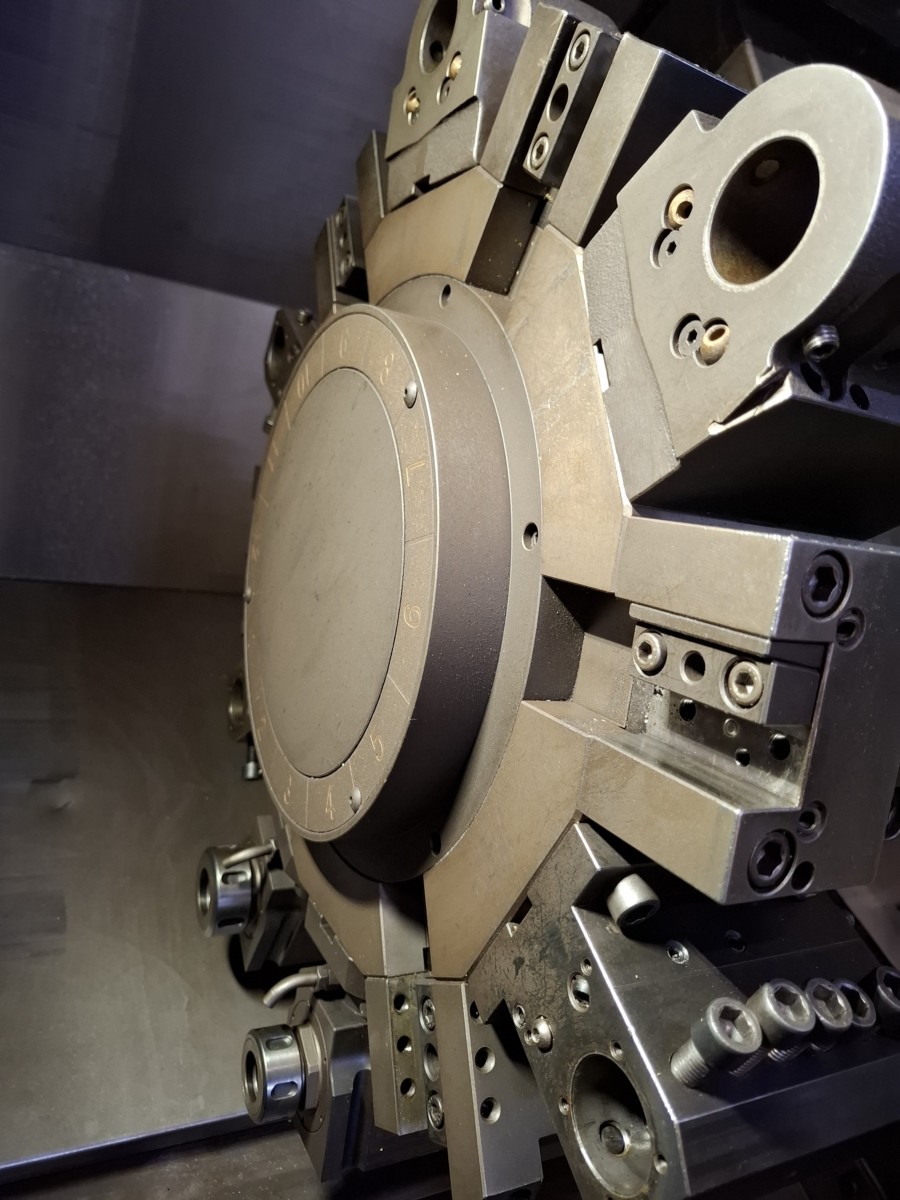

- number of toolpositions 12 pos.
- Driven Tool Positions: 12
- Spindle speed - driven tools 10.000 min -1
- power capacity - driven tools 5,5 / 3,7 kW
- tail stock 1
- weight of the machine ca. 6,2 t
- dimensions of the machine ca. 5,0 x 3,0 x 2,5 m
Desciption

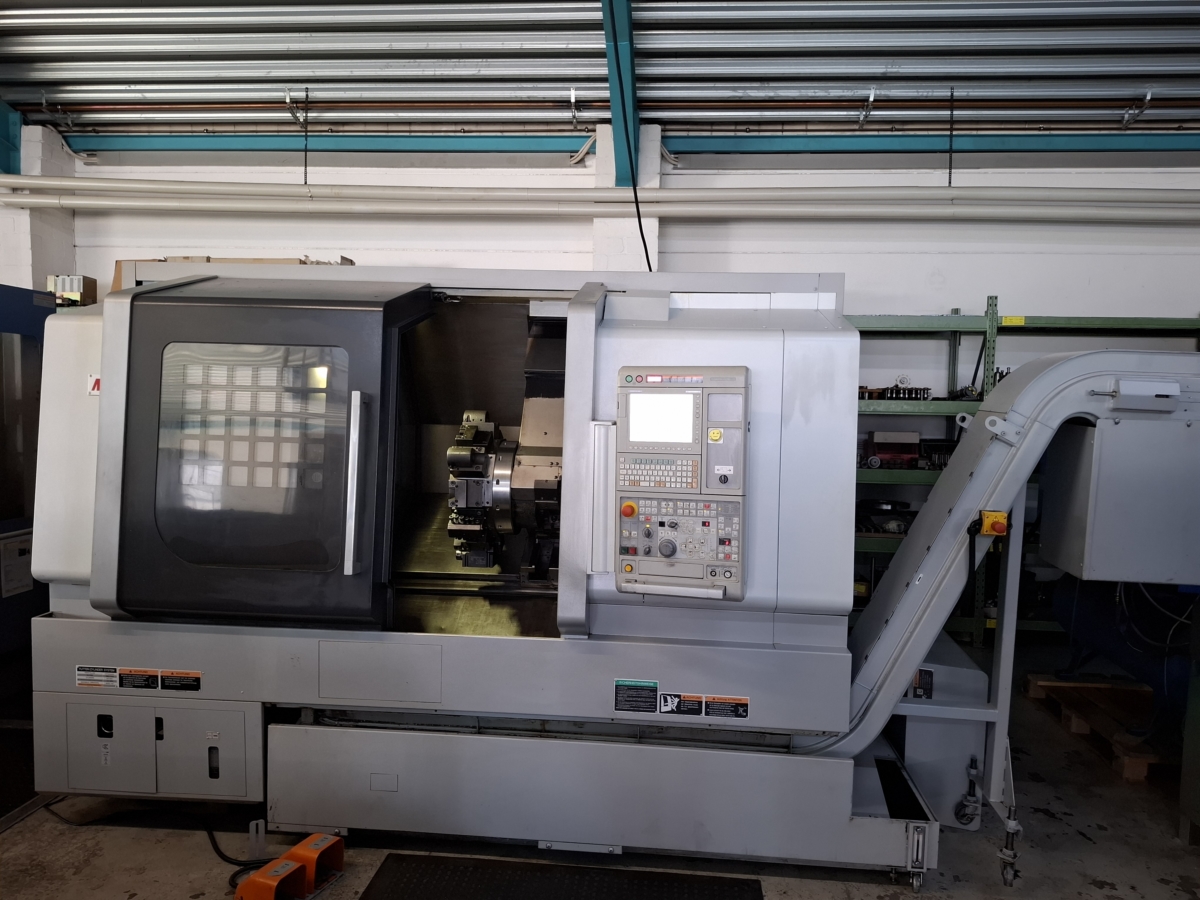

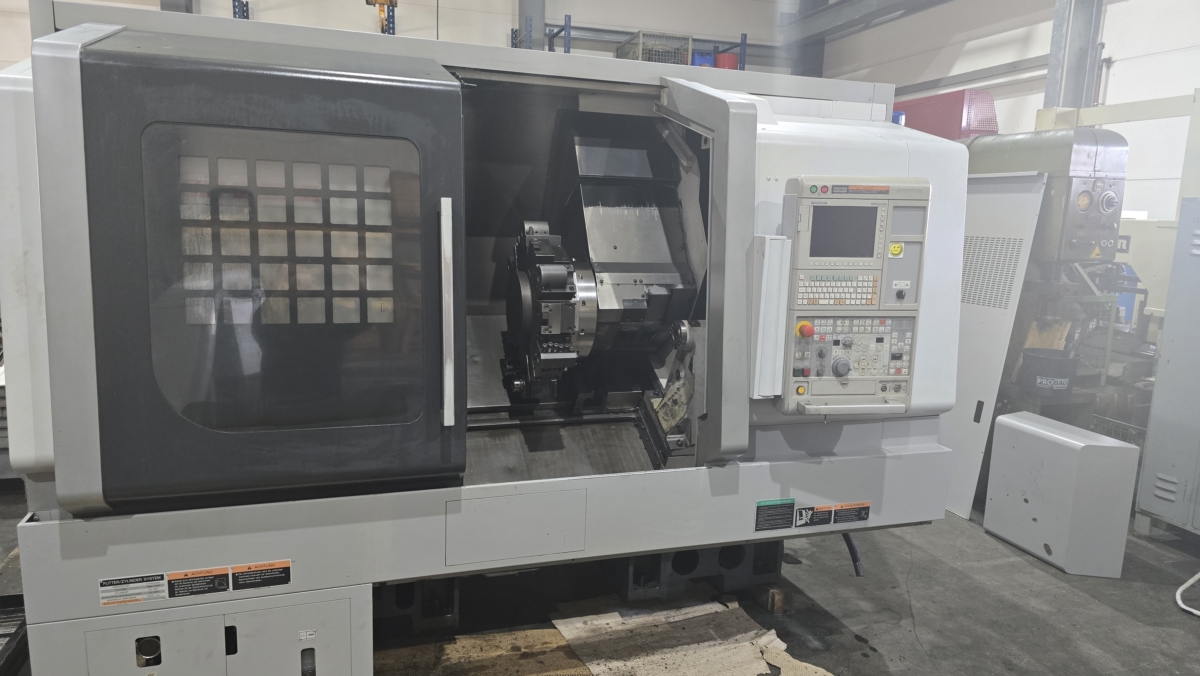

Used CNC- lathe with driven tools and Y- axis.- driven tools
- C-axis
- Y-axis

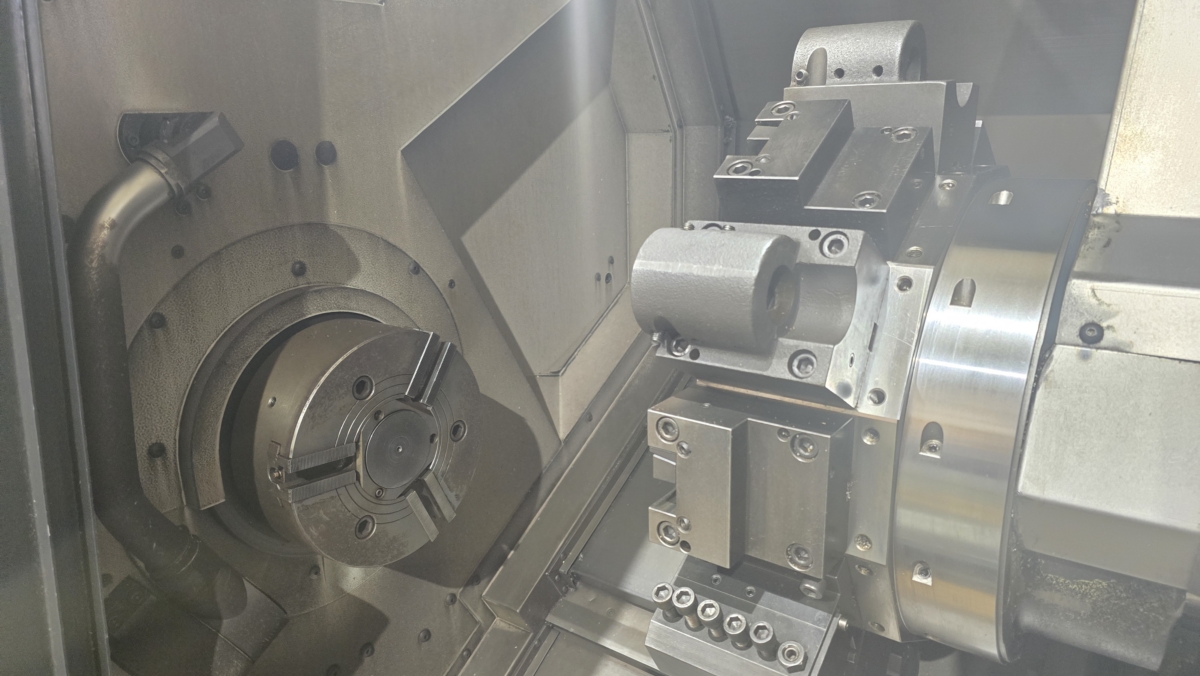

- 3- jaw chuck Ø 250 mm
- tool setter
- chipconveyor
- some fixed tool holders
- two driven tool holders

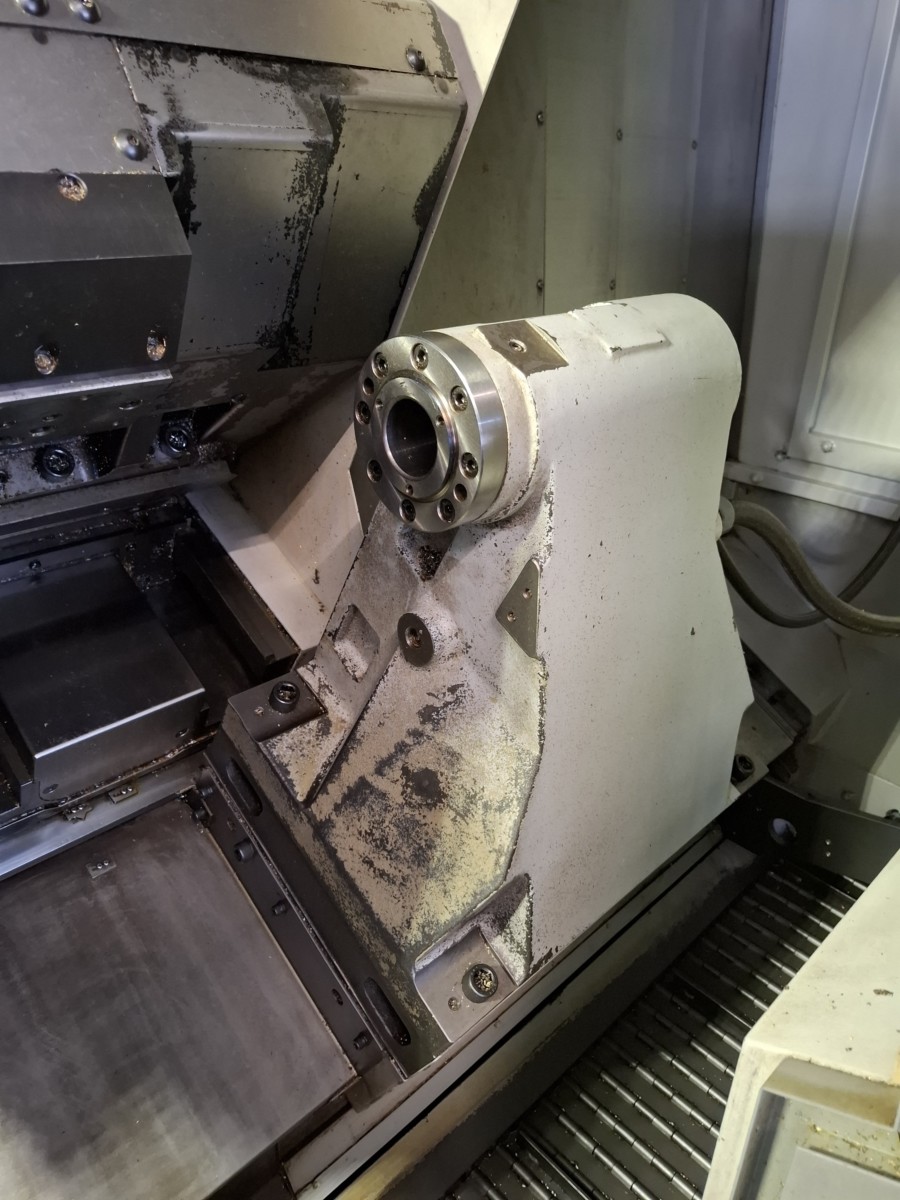

- tailstock
