Data

Stock-No.: 1021-46111
Make: MATSUURA
Type: MAXIA MX- 520
Newin : 2015
Control : Fanuc G-Tech 31i

Other Information

Storage location: Bremen
Country of origin: Japan
Delivery time: immediately
Freight base: ex location

Technical details

x-travel 630 mm
y-travel 560 mm
z-travel 510 mm
b-axis -125/ +10 °
c-axis 360.000 x 0,001 °

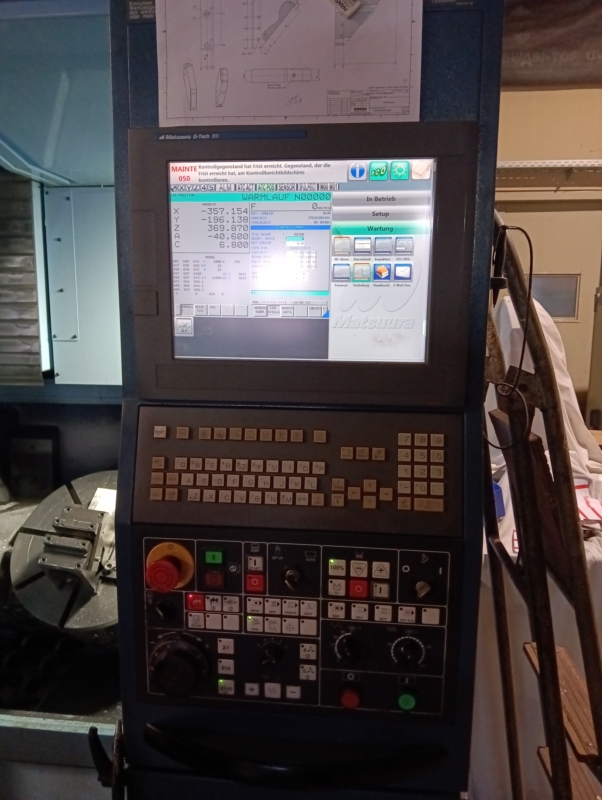

control Fanuc G-Tech 31i
table surface area Ø 500 mm
turning speed range 12000 U/min
max. torque on the spindle 167 Nm
power capacity - milling spindle 11/ 7,5 kW
internal coolant system feed 70 bar
rapid traverse 40 m/min
no. of tools in the magazine 90 Stück
tool taper HSK 63 A |
dimensions 2,3 x 3,65 x 3,0 m
weight 10,5 t

Desciption

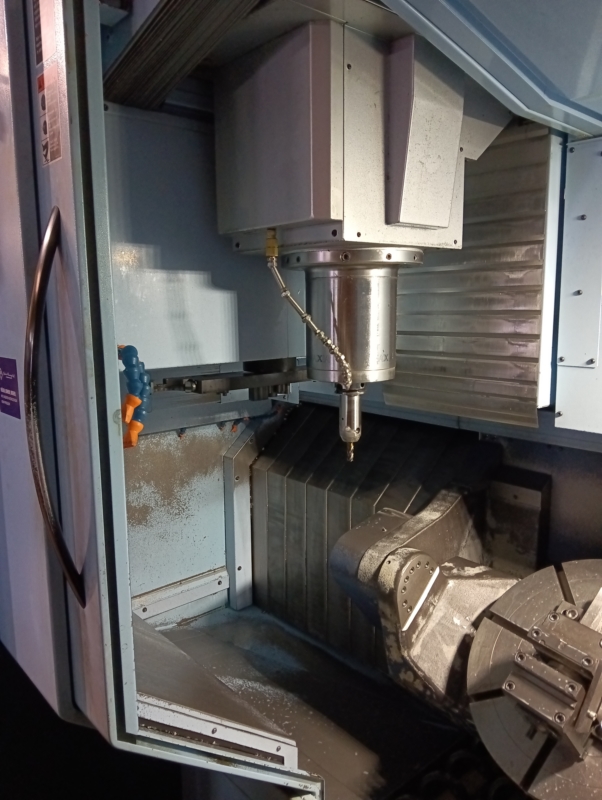

full 5-axis machining Center. First instalation in 2018

Equipment:

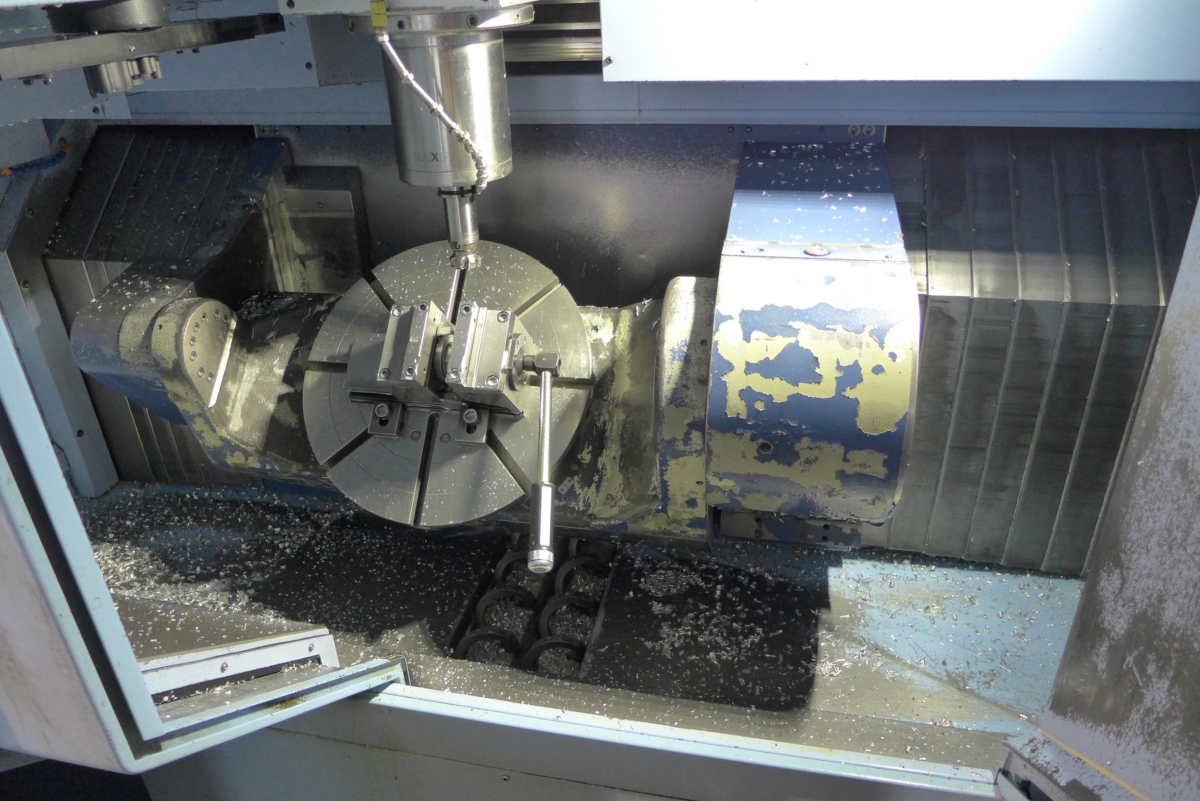

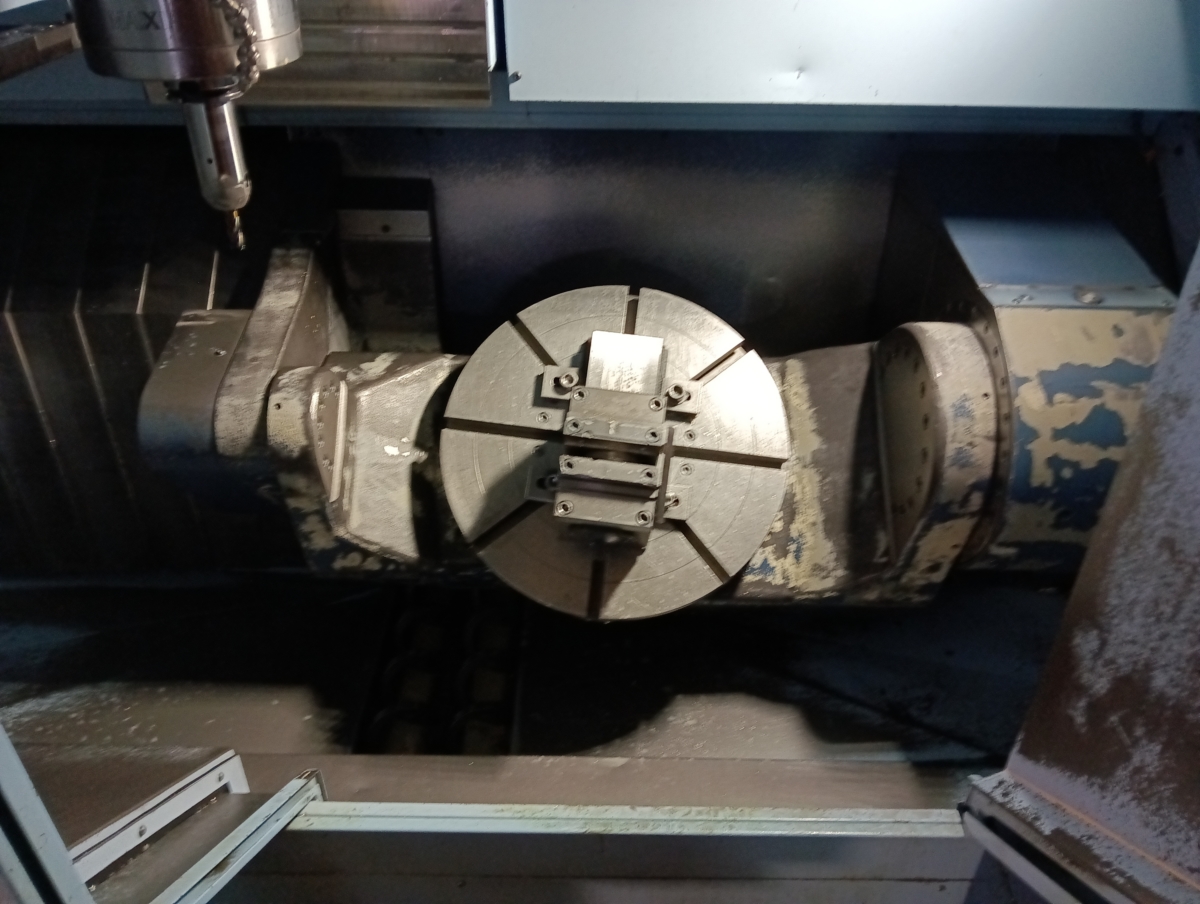

- NC rotating and swiveling table
- full covered
- spindle cooling

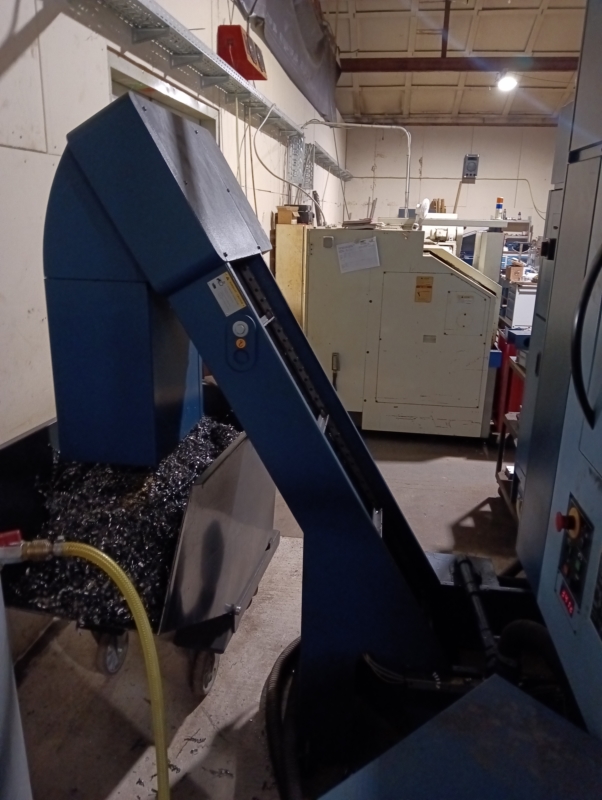

- chip conveyor

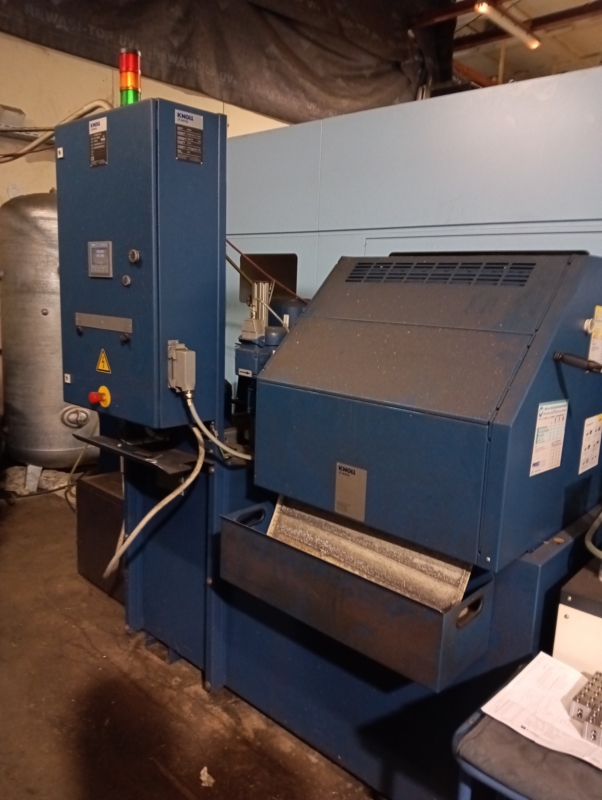

- filtersystem Knoll and internal coolant
- absolut scale
- coolant gun

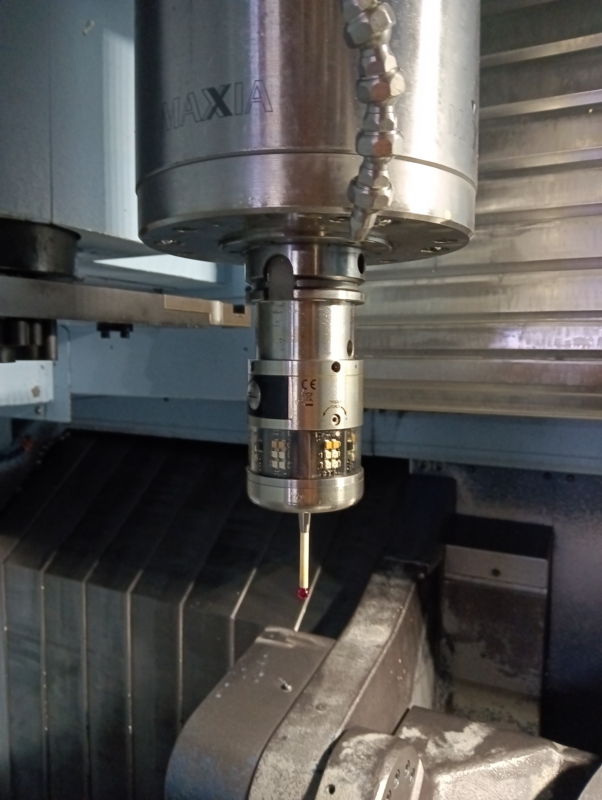

- 3D probe Renishaw OMP 60 incl."Easy Probe software"
- Memory expansion to 8 MB
- Matsuura Pivot Check
- control for cutting power
- Expansion of Macro Variables from 100 to 600
- 5- axis package (Al Nano Control, G54.2; TCPC....)

Fotos
