Data

Stock-No.: 1021-44311
Make: HEDELIUS
Type: RS 60 K- 2000
Newin : 2005
Control : Heidenhain iTNC 530

Other Information

Storage location: Bremen
Country of origin: Germany
Delivery time: December
Freight base: free loaded, from location

Technical details

x-travel 2000 (775 + 600) mm
y-travel 620 mm
z-travel 520 mm

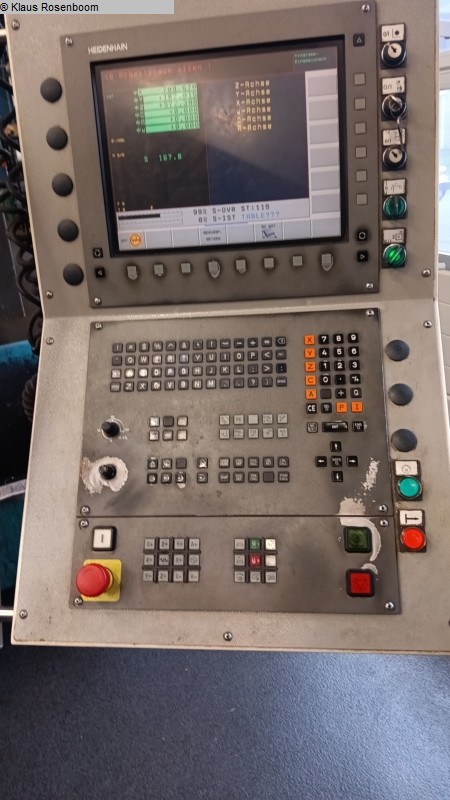

Control Heidenhain iTNC 530
turning speed range - main spindle 12.000 min/-1
power capacity - main spindel 18 kW
table surface area 1.200 x 600 mm
rotary table diameter Ø 500 mm
swivellable +15/-95 °
rotatable 0- 360 °
max. table load 1000/350 kg
tool taper SK 40
number of toolpositions 30 pos.
internal coolant system feed 20 bar
rapid traverse ( X / Y / Z ) 30 m/min
dimensions 5,0x 2,5 x 3,3 m
weight of the machine ca. 11 t

Desciption

CNC-Machiningcenter Universal, 5-Axis and fixed table
Machine overhold for 60.000

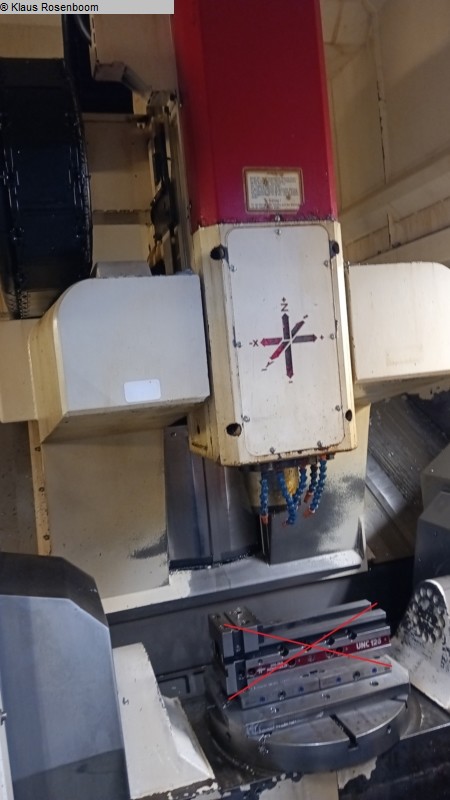

- NC-Swivel-Rotary-Table integrated right working area

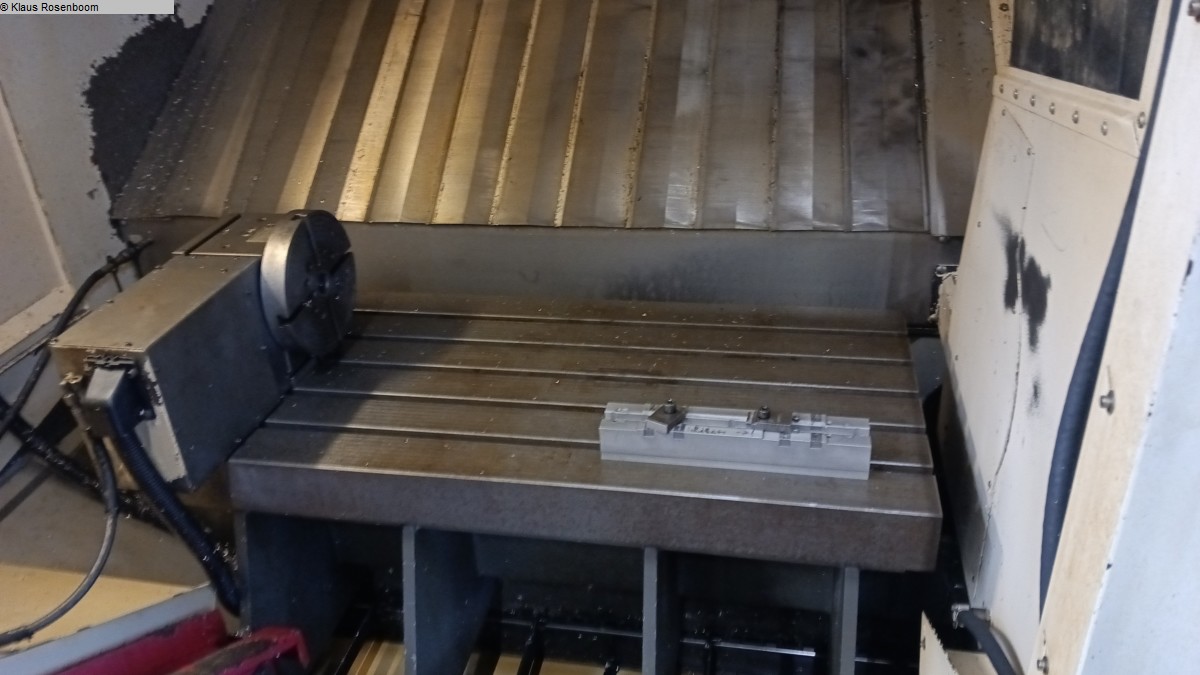

- Fixed-Table left working area
- 4th axis on fixed table 165 centre hight
- Chip conveyor

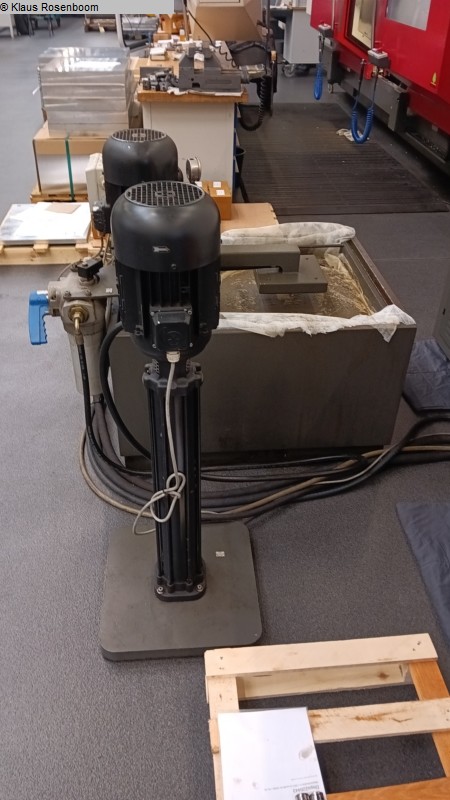

- internal coolant
- filter
- 3D probe
- Oil dust collector
- 2022/2023 overhold for 60.000
new slideways aspindles in all axis
- electric roof

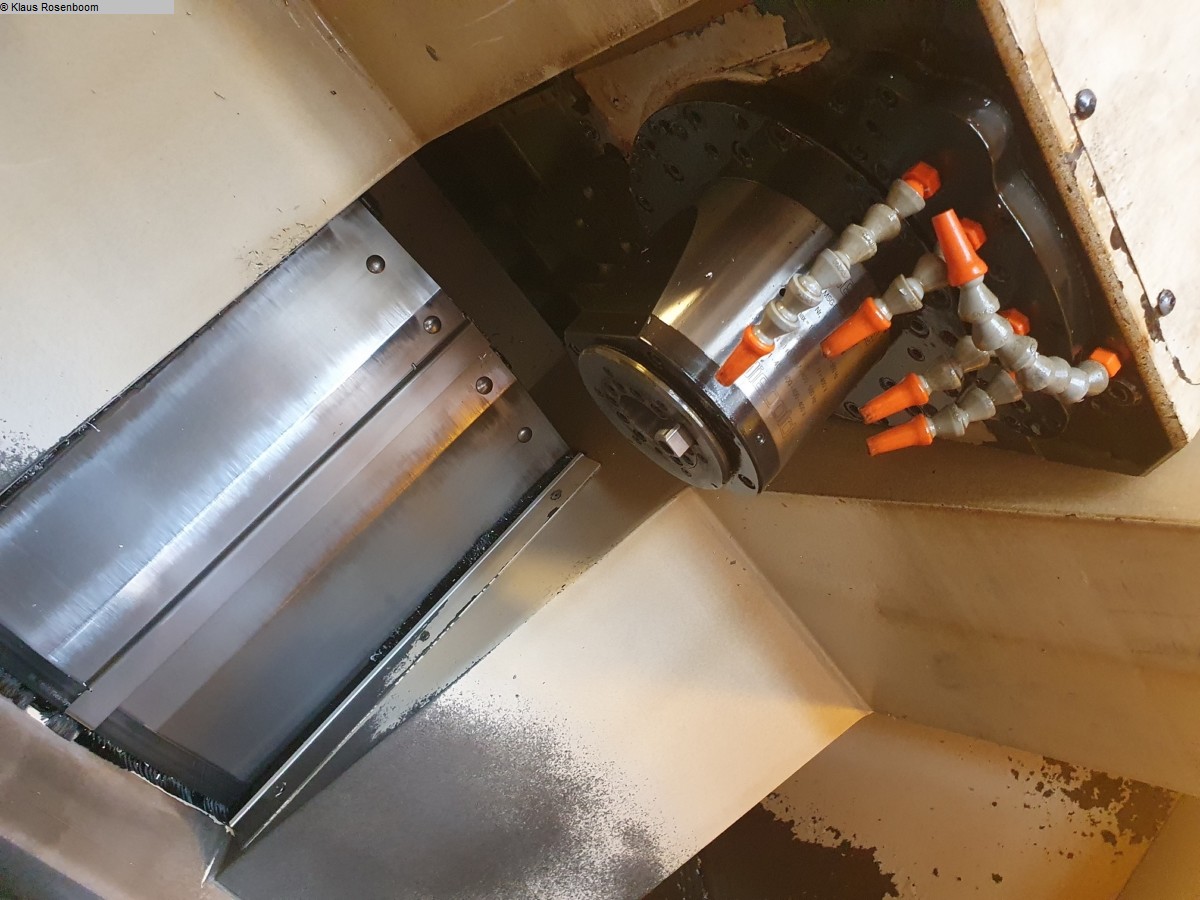

- new spindle in 2016 at 20.800 Spindle hours

Fotos
